The Eventuri G20 B58 intake system is made up of a series of components designed for a specific purpose and manufactured to the highest standards. Made from 100% pre-preg carbon fiber with no fiberglass, this allows for a smooth internal surface for smoother airflow.

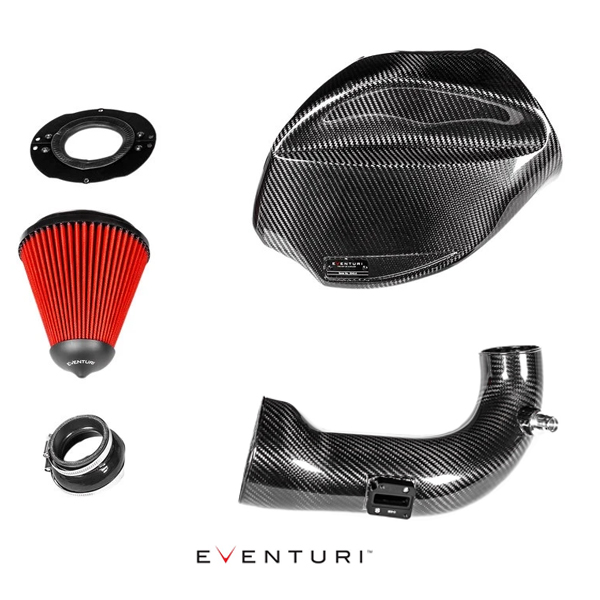

Each intake system consists of:

Dual-fuel carbon fiber airbox
Custom-built high-flow dry cone filter
Carbon fiber inlet pipe
CNC-machined temperature sensor bracket
CNC-machined breather adapter
Gold-reflective heat shield
Laser-cut stainless steel brackets
Silicone coupler with OEM-spec clamps

Dual-Feed Carbon Fiber Airbox

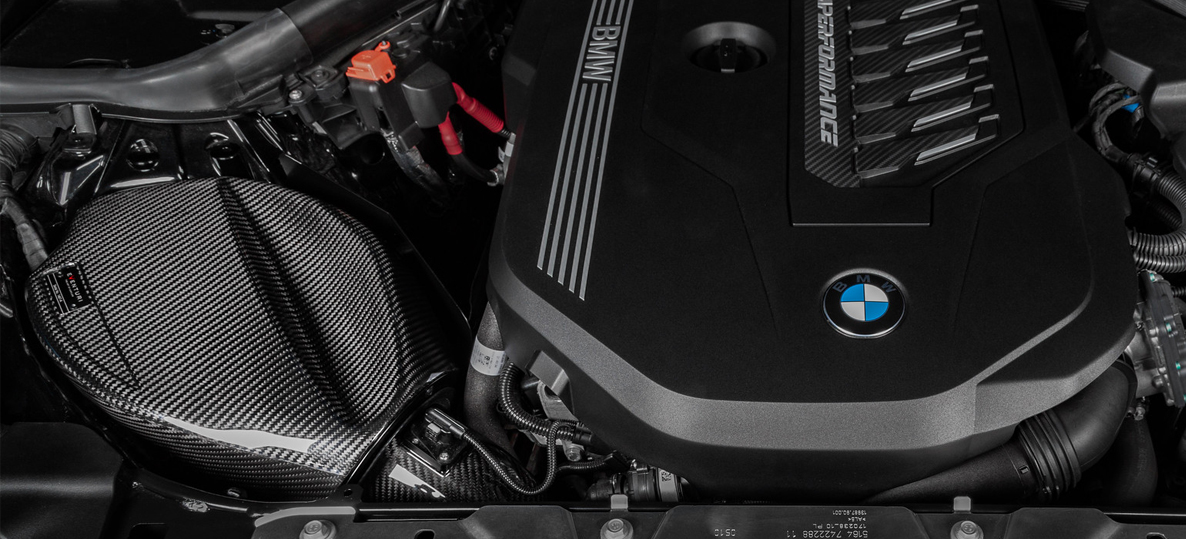

Made of prepreg carbon fiber, the airbox seals the filter from engine compartment heat and provides a dual supply of cold air. Because the airbox is located next to the exhaust manifold, it’s crucial that the filter be completely sealed. A laser-cut plate with a rubber sealing strip that attaches to the airbox was designed for this purpose. The intake hose passes through the plate, and the rubber seal ensures that heated air doesn’t enter the airbox. To further reduce heat absorption, an additional heat shield with a gold reflective layer is installed on the side of the exhaust manifold, effectively combating radiant heat transfer.
